Stabilisatorbolzen

Artnr: 307301

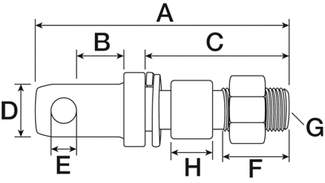

Stabilisatorbolzen (646101M1, 646101M2)

• A = 66mm
• B = 6mm
• C = 35mm
• Ø D = 19mm
• Ø E = 12mm
• F = 28mm
• G = 3/4 UNF (19,05mm)

• H = 6,5


passend für die Massey Ferguson Traktoren

• Serie: 100
  122, 130, 133, 134C, 134V, 135, 135V, 140, 145, 145S, 145V, 148, 150, 152, 152F, 152S, 152V, 154, 154C, 154F, 154S, 154V, 155, 158, 158F, 158S, 158V, 164TF, 164TS, 164TV, 165, 168, 168F, 168S, 174, 174C, 174F, 174S, 174V, 175, 175S, 178, 184, 184F, 184S, 185, 188, 194, 194C, 194F, 194S
• Serie: 200
  230, 231, 233, 234C, 234CF, 234S, 235, 240, 240S, 243, 244CF, 245, 250, 253 (Italy), 253 (UK), 254, 254C, 254CF, 254S, 255, 255 (USA), 260, 261, 263 (UK), 263T (Italy), 264T, 264TCF, 264TS, 265, 265S, 273, 274, 274C, 274CF, 274S, 274SK, 275, 275E, 283, 284, 284S, 285, 285 (USA), 285S, 290, 290E, 290S, 293, 294, 294C, 294S, 298
• Serie: 200 (Brazil & South Africa)
  265
• Serie: 500
  550, 560, 565, 575, 590, 592, 595

Artnr: 307307

Stabilisatorbolzen

• A = 104mm
• B = 16mm
• C = 60mm
• Ø D = 22mm
• Ø E = 12,2mm
• F = 57mm
• G = 3/4"
• H = -

passend für die Massey Ferguson Traktoren

• Serie: 100
  122, 130, 133, 134C, 134V, 135, 135V, 140, 145, 145S, 145V, 148, 150, 152, 152F, 152S, 152V, 154, 154C, 154F, 154S, 154V, 155, 158, 158F, 158S, 158V, 164TF, 164TS, 164TV, 165, 168, 168F, 168S, 174, 174C, 174F, 174S, 174V, 175, 175S, 178, 184, 184F, 184S, 185, 188, 194, 194C, 194F, 194S
• Serie: 200
  230, 231, 233, 234C, 234CF, 234S, 235, 240, 240S, 243, 244CF, 245, 250, 253 (Italy), 253 (UK), 254, 254C, 254CF, 254S, 255, 255 (USA), 260, 261, 263 (UK), 263T (Italy), 264T, 264TCF, 264TS, 265, 265S, 273, 274, 274C, 274CF, 274S, 274SK, 275, 275E, 283, 284, 284S, 285, 285 (USA), 285S, 290, 290E, 290S, 293, 294, 294C, 294S, 298
• Serie: 200 (Brazil & South Africa)
  265
• Serie: 500
  550, 560, 565, 575, 590, 592, 595

Artnr: 307308

Stabilisatorbolzen

• A = 104mm
• B = 16mm
• C = 57mm
• Ø D = 22mm
• Ø E = 12,2mm
• F = -
• G = 3/4" UNF
• H = 18,5mm

passend für die Massey Ferguson Traktoren

• Serie: 100
  122, 130, 133, 134C, 134V, 135, 135V, 140, 145, 145S, 145V, 148, 150, 152, 152F, 152S, 152V, 154, 154C, 154F, 154S, 154V, 155, 158, 158F, 158S, 158V, 164TF, 164TS, 164TV, 165, 168, 168F, 168S, 174, 174C, 174F, 174S, 174V, 175, 175S, 178, 184, 184F, 184S, 185, 188, 194, 194C, 194F, 194S
• Serie: 200
  230, 231, 233, 234C, 234CF, 234S, 235, 240, 240S, 243, 244CF, 245, 250, 253 (Italy), 253 (UK), 254, 254C, 254CF, 254S, 255, 255 (USA), 260, 261, 263 (UK), 263T (Italy), 264T, 264TCF, 264TS, 265, 265S, 273, 274, 274C, 274CF, 274S, 274SK, 275, 275E, 283, 284, 284S, 285, 285 (USA), 285S, 290, 290E, 290S, 293, 294, 294C, 294S, 298
• Serie: 200 (Brazil & South Africa)
  265
• Serie: 500
  550, 560, 565, 575, 590, 592, 595

Artnr: 688138012

Bolzen für Stabilisator / Stabilisatorbolzen

• A Ø = 20mm

• B = 62mm

• C = 114,4mm

• D = M24 x 3, Rechtsgewinde

• E = 88,4mm

• Fabrikat = CBM


Artnr: 688138013

Stabilisatorbolzen

• A Ø = 25mm
• B = 78mm
• C = -
• D = M24


Artnr: 688138021

Stabilisatorbolzen

• A = 70mm
• B = 9,8mm
• C = 35mm
• Ø D = 19mm
• Ø E = 12mm
• F = 28mm
• G = 3/4" UNF
• H = 3,2mm


Artnr: 688138031

Stabilisatorbolzen

• A = 104mm

• B = 16mm
• C = 60mm
• Ø D = 22mm
• Ø E = 12,2mm
• F = 57mm
• G = 3/4" UNF


Artnr: 688138041

Stabilisatorbolzen

• A Ø = 22mm
• B = 64mm / 34mm

• C = 102mm
• D = 7/16" Zoll UNF


Artnr: 688138051

Stabilisatorbolzen

• A Ø = 22mm
• B = 77mm / 35mm

• C = 118mm
• D = 5/8" Zoll UNF


Artnr: 688138061

Stabilisatorbolzen

• A Ø = 22mm
• B = 47mm / 35mm

• C = 90mm
• D = 3/4" Zoll UNF


Artnr: 1080M12

Stabilisatorbolzen

• Nutzlänge = 63mm
• Durchmesser 16mm

passend für die Massey Ferguson Traktoren

• 100 Series (1947 to 1969)
  35, 35X, 835

• TE20 Series
  TE20, TEA20, TED20, TEF20, TO20


Artnr: 171M12

Stabilisatorbolzen

passend für die Massey Ferguson Traktoren

• TEA20, TED20, TEF20
• 135, 135 Petrol, 148, 35, 35X, 835, FE35

Artnr: 25307302

Unterlenker Stabilisatorbolzen (824332M1)

• A = 75mm

• B = 24mm

• C = 31mm

• ØD = 22mm

• ØE = 10mm

• F = 34mm

• G = 5/8"UNF (15,88mm)


passend für die Massey Ferguson Traktoren

• Serie: 100
  122, 130, 133, 134C, 134V, 135, 135V, 140, 145, 145S, 145V, 148, 150, 152, 152F, 152S, 152V, 154, 154C, 154F, 154S, 154V, 155, 158, 158F, 158S, 158V, 164TF, 164TS, 164TV, 165, 168, 168F, 168S, 174, 174C, 174F, 174S, 174V, 175, 175S, 178, 184, 184F, 184S, 185, 188, 194, 194C, 194F, 194S

• Serie: 200
  230, 231, 233, 234C, 234CF, 234S, 235, 240, 240S, 243, 244CF, 245, 250, 253 (Italien), 253 (UK), 254, 254C, 254CF, 254S, 255, 255 (USA), 260, 261, 263 (UK), 263T (Italien), 264T, 264TCF, 264TS, 265, 265S, 273, 274, 274C, 274CF, 274S, 274SK, 275, 275E, 283, 284, 284S, 285, 285 (USA), 285S, 290, 290E, 290S, 293, 294, 294C, 294S, 298

• Serie: 200 (Brasilien - Süd Afrika)
  265

• Serie: 500
  550, 560, 565, 575, 590, 592, 595


Artnr: 25307303

Unterlenker Stabilisatorbolzen - Massey Ferguson (186802M1, 893420M1)

• A = 83,5mm
• B = 10mm
• C = 40mm
• ØD = 22mm
• ØE = 12,2mm
• F = 22mm
• G = 3/4"UNF

passend für die Massey Ferguson Traktoren

• Serie: 100
  122, 130, 133, 134C, 134V, 135, 135V, 140, 145, 145S, 145V, 148, 150, 152, 152F, 152S, 152V, 154, 154C, 154F, 154S, 154V, 155, 158, 158F, 158S, 158V, 164TF, 164TS, 164TV, 165, 168, 168F, 168S, 174, 174C, 174F, 174S, 174V, 175, 175S, 178, 184, 184F, 184S, 185, 188, 194, 194C, 194F, 194S

• Serie: 200
  230, 231, 233, 234C, 234CF, 234S, 235, 240, 240S, 243, 244CF, 245, 250, 253 (Italien), 253 (UK), 254, 254C, 254CF, 254S, 255, 255 (USA), 260, 261, 263 (UK), 263T (Italien), 264T, 264TCF, 264TS, 265, 265S, 273, 274, 274C, 274CF, 274S, 274SK, 275, 275E, 283, 284, 284S, 285, 285 (USA), 285S, 290, 290E, 290S, 293, 294, 294C, 294S, 298

• Serie: 200 (Brasilien - Süd Afrika)
  265

• Serie: 500
  550, 560, 565, 575, 590, 592, 595

Artnr: 8881807315

U-Bolzen für Stabilisator (81807315)

• Höhe = 152mm

• Innendurchmesser = 127mm

• Ø = 10mm


passend bei den Ford Traktoren

• 10 Series
  2310, 2610, 2810, 2910, 3610, 3910, 4110, 4410, 4610

• 100 Series
  4100

• 1000 Series
  3000, 4000

• 30 Series
  3230, 3430, 3930, 4130, 4330, 4630, 4830, 5030

• 40 Series
  4140, 4340

• 600 Series
  2600, 4600

• 900 Series
  3900

• 200 Series
  4200


Artnr: 81097302

Stabilisatorbolzen (824332M1)

• A = 67mm

• B = 18mm

• C = 32mm

• Ø D = 22mm

• Ø E = 12mm

• F = 25mm

• G = 5/8" UNF / 15,87mm


passend für die Massey Ferguson Traktoren

• Serie: 100
  122, 130, 133, 134C, 134V, 135, 135V, 140, 145, 145S, 145V, 148, 150, 152, 152F, 152S, 152V, 154, 154C, 154F, 154S, 154V, 155, 158, 158F, 158S, 158V, 164TF, 164TS, 164TV, 165, 168, 168F, 168S, 174, 174C, 174F, 174S, 174V, 175, 175S, 178, 184, 184F, 184S, 185, 188, 194, 194C, 194F, 194S
• Serie: 200
  230, 231, 233, 234C, 234CF, 234S, 235, 240, 240S, 243, 244CF, 245, 250, 253 (Italy), 253 (UK), 254, 254C, 254CF, 254S, 255, 255 (USA), 260, 261, 263 (UK), 263T (Italy), 264T, 264TCF, 264TS, 265, 265S, 273, 274, 274C, 274CF, 274S, 274SK, 275, 275E, 283, 284, 284S, 285, 285 (USA), 285S, 290, 290E, 290S, 293, 294, 294C, 294S, 298
• Serie: 200 (SA)
  265
• Serie: 500
  550, 560, 565, 575, 590, 592, 595
